General Purpose Farm Duty Motor, 3-Phase, 1 1/2 HP, 208-230/460V AC, 1, 745 Nameplate RPM, 56 Frame MPN:48ZJ99
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9536101

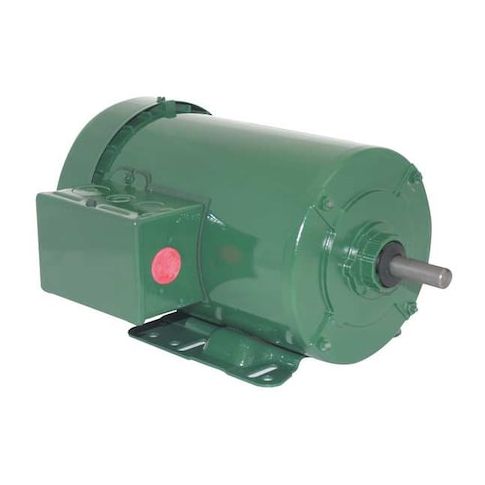

General Purpose Farm Duty Motor, 3-Phase, 1 1/2 HP, 208-230/460V AC, 1, 745 Nameplate RPM, 56 Frame
This 1.5 HP, 3-phase farm duty motor from Dayton is designed for heavy-duty applications in agricultural settings. Its rugged construction and totally enclosed fan-cooled design ensure reliable operation in harsh environments. With a continuous duty cycle and 1.15 service factor, this motor can handle demanding tasks such as irrigation pumps, grain handling equipment, and other machinery. Its compact 56 frame size makes it easy to install in tight spaces. Perfect for farmers and agricultural businesses, this motor provides a reliable and efficient power solution for a wide range of applications.
Top product features:
- Three-phase operation
- Totally Enclosed Fan Cooled design
- Continuous duty cycle
Top product applications:
- Pump and water circulation systems in agricultural settings
- Centrifugal pumps and irrigation systems on farms
- Industrial equipment and machinery such as grain dryers and conveyors
Farm Duty Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.5-4.5/2.2 A, 56 Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
