Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:119168.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9097182

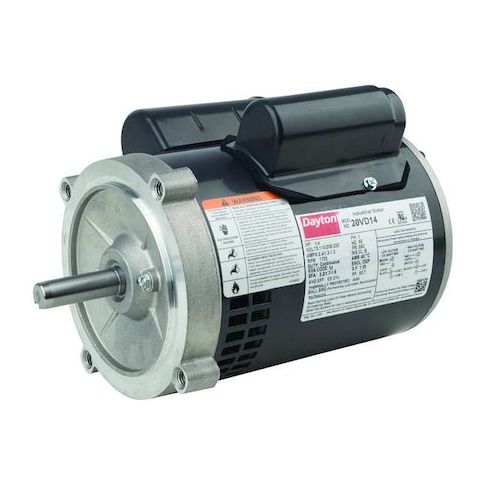

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56C Frame
This 1 horsepower capacitor-start/run general purpose motor from Dayton is a reliable and efficient solution for a variety of applications. Suitable for use in 115/208-230V AC environments, it features a 56C frame and operates at 1,725 RPM. With a continuous duty cycle and motor thermal protection, it can handle demanding tasks. The open drip-proof design and rigid base provide added protection and stability. Ideal for use in industries such as manufacturing, textile, and food processing, this motor offers a cost-effective and long-lasting solution for powering equipment and machinery. Its compact size and lightweight design make it easy to install and maintain.
Top product features:
- Capacitor-start/run design for improved starting and running efficiency
- Single-phase motor operation for use in a variety of applications
- Open drip-proof enclosure design for protection against dust and water splash
Top product applications:
- Pumps and water treatment systems
- Fans and ventilation systems
- Conveyors and material handling systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.4/4.6-4.2 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.60
- Package Width: 8.70
- Package Height: 10.80
- Package Weight: 40.65
Product info last updated on February 2, 2026 5:32am UTC
Category: Motors
