Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:31TR92
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9097173

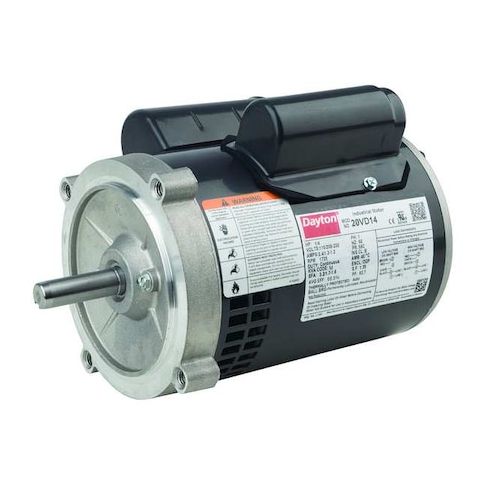

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame
This 3/4 hp Capacitor-Start/Run General Purpose Motor from Dayton is designed for a wide range of applications, including pumps, fans, and conveyor systems. Its single-phase motor design and 1,725 RPM nameplate speed make it suitable for use in various industrial settings. The motor's open drip-proof enclosure and all-angle mounting position provide flexibility in installation. With a service factor of 1.25 and continuous duty cycle, this motor can handle demanding tasks. Its compact size and lightweight design make it easy to integrate into existing systems, while its 40°C maximum ambient temperature ensures reliable operation in a variety of environments.
Top product features:
- Capacitor-start/run design for improved motor efficiency and reliability
- Single-phase motor operation for straightforward installation and setup
- Open drip-proof design for protection against dust and moisture
Top product applications:
- Pump
- Fan
- Conveyor
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.6/3.5-3.3 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.10
- Package Width: 8.70
- Package Height: 10.90
- Package Weight: 40.60
Product info last updated on January 21, 2026 4:29pm UTC
Category: Motors
