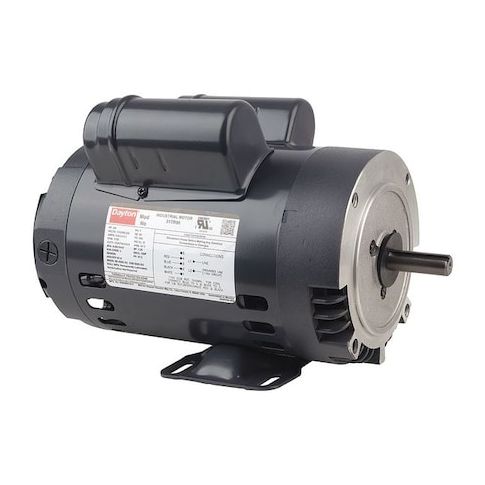

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:119160.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9097155
Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame
This 3/4 hp Capacitor-Start/Run General Purpose Motor from Dayton is a reliable and efficient solution for various applications. Suitable for use in 115/208-230V AC environments, it delivers 1,725 RPM and 6.6/3.5-3.3 A full load amps. With a 56C frame and open drip-proof design, it can operate in a range of temperatures and environments. Ideal for continuous duty cycles, this motor is perfect for use in manufacturing, industrial, and commercial settings, including conveyor systems, pumps, and fans. Its compact size and rugged construction make it a versatile choice for a variety of applications.
Top product features:
- Capacitor-Start/Run design enables the motor to start and run efficiently
- Motor design is single phase
- Motor has a continuous duty cycle
Top product applications:
- Pumps and blowers for industrial and commercial use
- Fans for ventilation and air circulation systems
- Industrial machinery such as conveyor belts and mixers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.6/3.5-3.3 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.50
- Package Width: 9.30
- Package Height: 10.70
- Package Weight: 41.55
Product info last updated on February 28, 2026 11:55am UTC
Category: Motors
