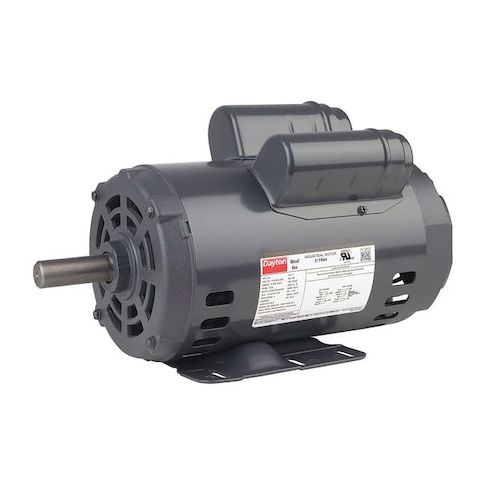

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 56HZ Frame MPN:119178.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9097137
Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 56HZ Frame
The Dayton Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in various industries, this motor provides a powerful 2 hp output at 1,725 RPM, making it ideal for applications that require a moderate speed and torque. Its compact 56HZ frame design and open drip-proof enclosure ensure easy installation and minimal maintenance. With a service factor of 1.15 and a maximum ambient temperature of 40°C, this motor can operate in a variety of environments, from manufacturing to food processing, and is an excellent choice for continuous duty cycles.
Top product features:
- Capacitor-start/run design for improved motor efficiency and reliability
- Single-phase motor operation for a wide range of applications
- Open drip-proof enclosure design for added protection against dust and moisture
Top product applications:
- Pump applications for residential and commercial use
- Fans and blowers for air circulation and ventilation
- Conveyors and other material handling equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 17.6/9.5-8.8 A, 56HZ Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 12.50
- Package Height: 10.60
- Package Weight: 50.85
Product info last updated on April 12, 2026 3:06am UTC
Category: Motors
