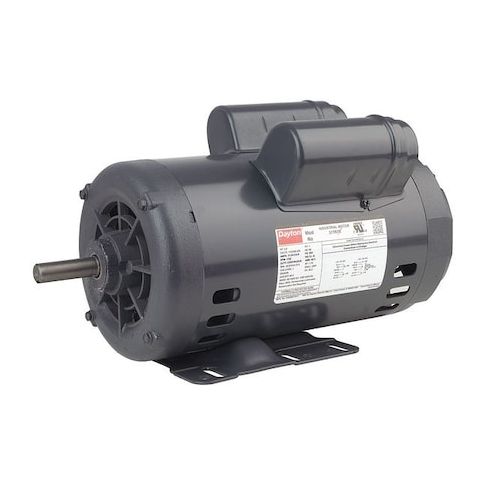

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56H Frame
This 1.5 horsepower general purpose motor from Dayton is a reliable and efficient choice for a variety of applications. Suitable for use in single phase systems, it features a capacitor-start/run design for smooth and quiet operation. The motor is rated for 115/208-230V AC voltage and has a nameplate RPM of 1,725. It is designed for continuous duty cycles and has a service factor of 1.15, making it suitable for use in a range of environments. Ideal for use in industrial settings, it is also a great option for commercial applications such as manufacturing, packaging, and material handling.
Top product features:
- Capacitor-start/run design for improved starting and running efficiency
- Single-phase operation for use in a variety of applications
- Open drip-proof enclosure for protection against moisture and debris
Top product applications:
- Pump applications
- Industrial conveyor systems
- Fans and blowers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 12.6/6.9-6.3 A, 56H Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.70
- Package Width: 12.10
- Package Height: 10.80
- Package Weight: 47.00
