Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56HZ Frame MPN:31TR81
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9097067

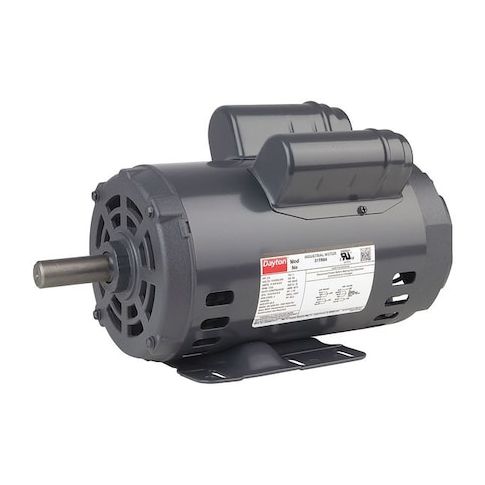

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56HZ Frame
This 1 horsepower general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial use. With a capacitor-start/run design, it provides efficient and reliable operation in single-phase systems. Capable of handling continuous duty cycles, it is ideal for applications that require consistent power. The motor's open drip-proof enclosure and rigid base mounting design make it easy to integrate into existing systems. Its compact size and lightweight design also make it suitable for use in space-constrained areas, making it a versatile and practical solution for various industrial and commercial applications.
Top product features:
- Capacitor-Start/Run design for efficient starting and running
- Operates at 1,725 RPM for high-speed applications
- Open Drip Proof enclosure design for protection in harsh environments
Top product applications:
- Pumps and blowers in residential and commercial applications
- Conveyor systems and other industrial machinery
- Fans and blowers in HVAC systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.4/4.6-4.2 A, 56HZ Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.40
- Package Width: 10.40
- Package Height: 10.90
- Package Weight: 42.90
Product info last updated on April 14, 2026 8:05am UTC
Category: Motors
