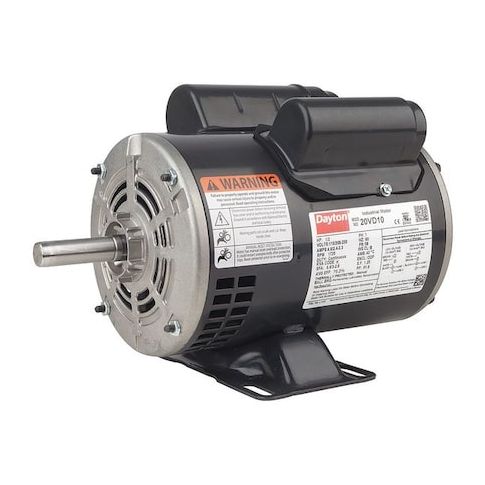

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56 Frame MPN:119156.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9096972
Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56 Frame
The Dayton Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. With a 3/4 hp horsepower rating and 1,725 RPM nameplate speed, this motor is ideal for use in industrial settings, such as conveyor systems, pumps, and fans. Its single-phase design and capacitor-start/run motor design provide a high level of performance and durability. The motor's open drip-proof enclosure and rigid base mounting make it easy to install and maintain. With a service factor of 1.25 and a maximum ambient temperature of 40 degrees C, this motor is designed to handle demanding applications and provide years of reliable service.
Top product features:
- Capacitor-start/run motor design provides efficient starting and running capabilities.
- Single phase motor operation allows for easy installation and connection.
- Open drip proof motor enclosure design protects against dust and water ingress.
Top product applications:
- Pump
- Conveyor System
- Compressor
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.6/3.5-3.3 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 8.60
- Package Height: 10.80
- Package Weight: 40.60
Product info last updated on February 2, 2026 9:20am UTC
Category: Motors
