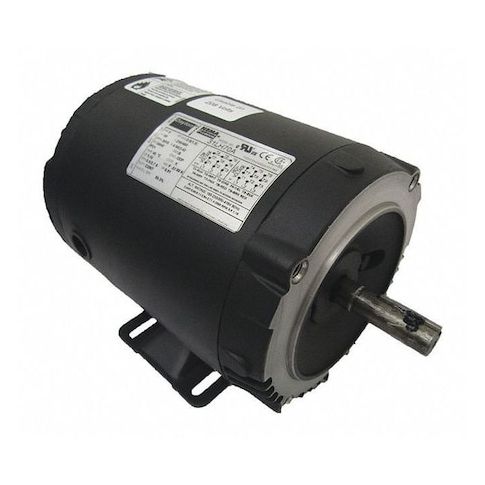

Three-Phase General Purpose Motor, 2 HP, 56HC Frame, 230/460V AC Voltage, 3510 Nameplate RPM MPN:31LH70
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9096446
Three-Phase General Purpose Motor, 2 HP, 56HC Frame, 230/460V AC Voltage, 3510 Nameplate RPM
The Dayton 2 HP Three-Phase General Purpose Motor is a reliable and efficient solution for various industrial applications. Designed for continuous duty, this motor features a 56HC frame and operates at 3510 nameplate RPM. With a maximum ambient temperature of 40°C, it can handle demanding environments. The motor's rigid base and C-face mounting type provide stability and easy installation. Its 85.5% nominal efficiency and 1.15 service factor make it a cost-effective option for applications such as pumps, fans, and conveyor systems. Suitable for use in food processing, manufacturing, and other industries, this motor offers a durable and long-lasting performance.
Top product features:
- Three-phase operation for efficient power transmission
- Ball motor bearings for smooth and durable operation
- CW/CCW motor shaft rotation for flexibility in installation and application
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 3510, Frame 56HC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.8/2.4 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 9.00
- Package Height: 9.70
- Package Weight: 36.05
Product info last updated on February 11, 2026 3:09pm UTC
Category: Motors
