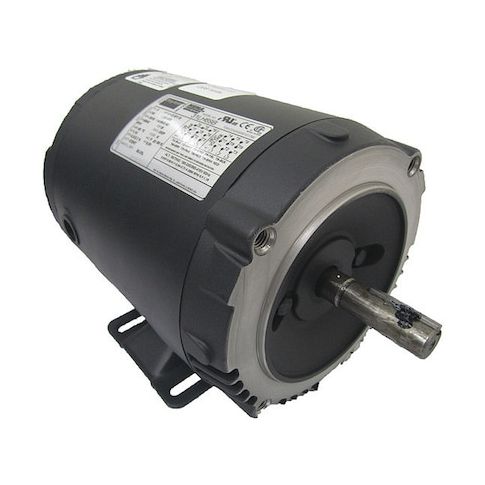

Three-Phase General Purpose Motor, 2 HP, 56HC Frame, 230/460V AC Voltage, 3510 Nameplate RPM MPN:31LH69
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9096437
Three-Phase General Purpose Motor, 2 HP, 56HC Frame, 230/460V AC Voltage, 3510 Nameplate RPM
This 2 HP, 3-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial settings. Its 56HC frame and 230/460V AC voltage rating make it suitable for use in various environments. The motor features a rigid base and C-face mounting type, making it easy to install and integrate into existing systems. With a service factor of 1.15 and a thermal protection class of F, this motor provides reliable and efficient performance. Ideal for continuous duty applications, it's perfect for use in conveyor systems, pumps, and other machinery.
Top product features:
- Three-phase operation for efficient power transmission
- Open drip-proof motor enclosure design for reduced exposure to contaminants
- Ball bearings for smooth and durable motor operation
Top product applications:
- Industrial machinery such as pumps, fans, and conveyor belts
- Centrifugal compressors and air handlers
- Oil and gas equipment including pumps and generators
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 3510, Frame 56HC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.8/2.4 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 11.25
- Package Height: 9.50
- Package Weight: 38.00
Product info last updated on February 26, 2026 12:11pm UTC
Category: Motors
