Three-Phase General Purpose Motor, 1 1/2 HP, 56C Frame, 230/460V AC Voltage, 3510 Nameplate RPM MPN:31LH67
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9096412

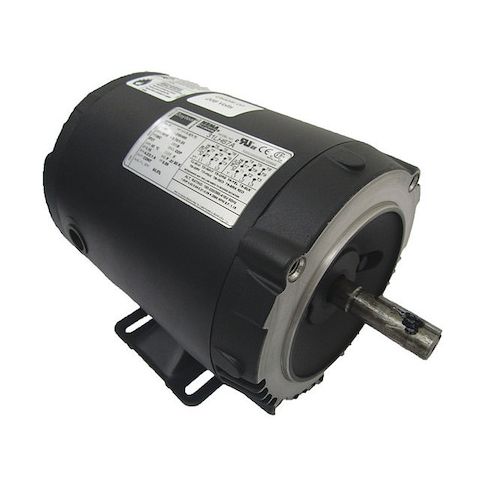

Three-Phase General Purpose Motor, 1 1/2 HP, 56C Frame, 230/460V AC Voltage, 3510 Nameplate RPM
This 1 1/2 HP three-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial use. With a nameplate RPM of 3510 and a maximum ambient temperature of 40 degrees C, it can handle demanding tasks with ease. Its open drip proof motor enclosure design and rigid base provide durability and stability, while its ball motor bearings ensure smooth operation. Suitable for continuous duty, this motor is ideal for applications such as pumps, fans, and conveyor systems, offering high efficiency and reliability. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Three-phase operation provides power to multiple electrical circuits.
- Open drip-proof motor enclosure design protects against dust and water exposure.
- Ball motor bearings ensure smooth and quiet operation.
Top product applications:
- Pumps
- Industrial machinery
- Compressors
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3510, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.7/1.9 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CE, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.25
- Package Width: 11.25
- Package Height: 9.50
- Package Weight: 31.80
Product info last updated on February 12, 2026 9:14am UTC
Category: Motors
