Three-Phase General Purpose Motor, 1 HP, 56HC Frame, 230/460V AC Voltage, 1760 Nameplate RPM MPN:31LH66
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9096403

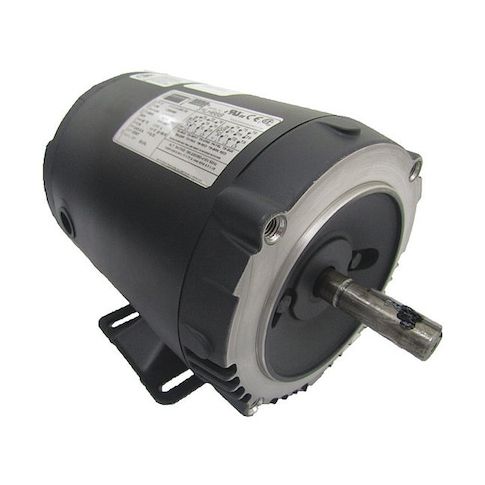

Three-Phase General Purpose Motor, 1 HP, 56HC Frame, 230/460V AC Voltage, 1760 Nameplate RPM
This 1 HP, three-phase general purpose motor from Dayton is designed for a variety of applications requiring continuous duty operation. With a nameplate RPM of 1760, this motor is suitable for use in industrial settings, such as manufacturing, processing, and material handling. Its open drip proof motor enclosure design provides protection from dust and water, while the rigid base and C-face motor mounting type ensure secure installation. The motor's high efficiency and service factor make it a reliable choice for applications requiring consistent performance and minimal downtime. Suitable for use in a range of industries, including food processing and pharmaceuticals.
Top product features:
- Three-Phase Operation
- Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumps and water treatment systems
- Industrial fans and blowers
- Conveyor systems and material handling equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 HP, Nameplate RPM 1760, Frame 56HC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.1/1.6 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 83.5 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 11.25
- Package Height: 9.50
- Package Weight: 33.10
Product info last updated on March 28, 2026 6:38pm UTC
Category: Motors
