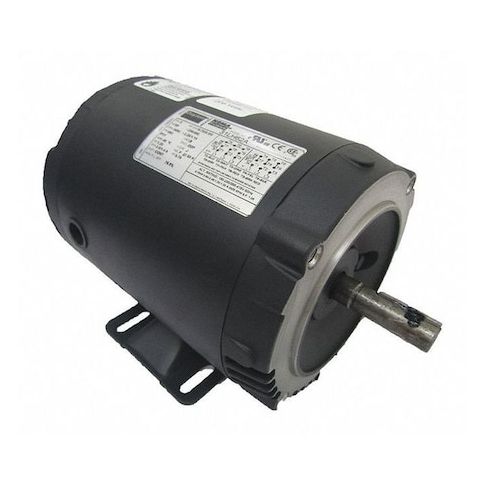

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 3485 Nameplate RPM MPN:31LH62
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9096367
Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 3485 Nameplate RPM
This 3/4 HP three-phase general purpose motor is designed for a wide range of applications, including manufacturing, commercial, and industrial settings. Its 230/460V AC voltage and 3485 nameplate RPM make it suitable for use in various machinery and equipment. The motor's open drip-proof enclosure design and rigid base provide a durable and reliable operation. With a service factor of 1.25 and a maximum ambient temperature of 40°C, this motor can handle demanding conditions. Its high efficiency and continuous duty make it an ideal choice for applications that require consistent performance.
Top product features:
- Three-phase operation for efficient energy use
- Open drip-proof motor enclosure design for protection against dust and moisture
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pumps and water treatment systems
- Industrial fans and blowers
- Manufacturing machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3/4 HP, Nameplate RPM 3485, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.3/1.1 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 75.3 Percent, Continuous Duty, 3001-3600, CE, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.25
- Package Width: 11.25
- Package Height: 9.50
- Package Weight: 23.90
Product info last updated on February 5, 2026 12:50pm UTC
Category: Motors
