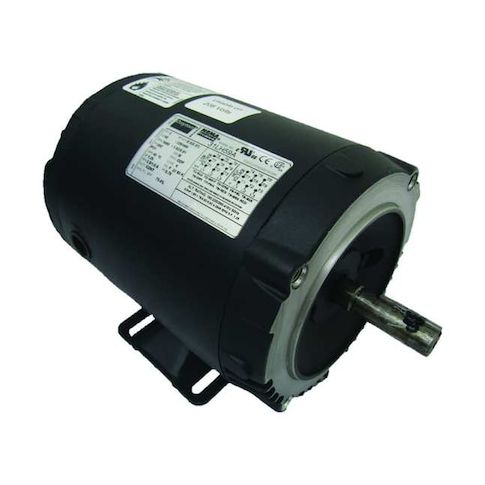

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 3490 Nameplate RPM MPN:31LH59
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9096333
Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 3490 Nameplate RPM
The Dayton 1/2 HP Three-Phase General Purpose Motor is a reliable and efficient solution for various industrial applications. Suitable for continuous duty, this motor is ideal for use in pumps, fans, and conveyor systems. Its 56C frame design and rigid base ensure stability and durability, while the ball bearings provide smooth operation. With a high service factor of 1.25 and thermal protection, this motor can handle demanding tasks. Its compact size and CE, CSA, and UL certifications make it a great choice for a wide range of industries, including manufacturing, food processing, and material handling.
Top product features:
- Three-Phase General Purpose Motor has a nameplate RPM of 3490, indicating high speed performance.
- The motor features a rigid base for stability and secure mounting.
- The motor uses ball bearings for smooth and durable operation.
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/2 HP, Nameplate RPM 3490, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.6/0.81 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 73.4 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 11.25
- Package Height: 9.50
- Package Weight: 21.50
Product info last updated on March 11, 2026 7:20am UTC
Category: Motors
