Three-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 3510 Nameplate RPM MPN:31LH56
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9096306

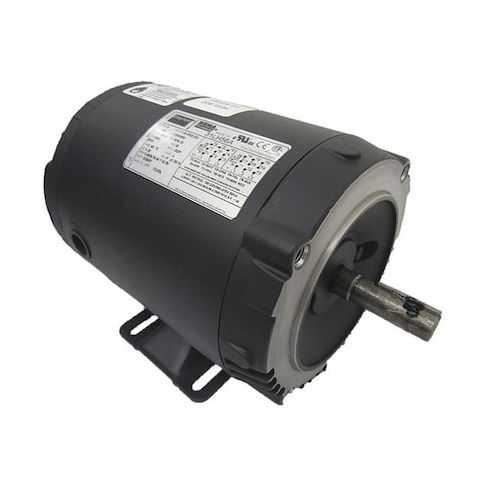

Three-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 3510 Nameplate RPM
This Dayton 3-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. With a 1/3 HP rating and 3510 nameplate RPM, it provides reliable and efficient operation in environments up to 40°C. The motor's open drip-proof enclosure and rigid base ensure durability and stability, while its ball bearings and steel frame provide long-lasting performance. Ideal for continuous duty applications, this motor is suitable for use in manufacturing, material handling, and other industries where high efficiency and reliability are required. Its compact size and CE, CSA, and UL certifications make it a versatile and trustworthy solution.
Top product features:
- Three-Phase General Purpose Motor design with Open Drip Proof Motor Enclosure for protection from dust and liquids.
- Ball Motor Bearings for smooth and quiet operation.
- Continuous Duty operation allows for extended use without overheating.
Top product applications:
- Pumps and pumping systems
- Conveyor systems
- Fans and ventilation systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/3 HP, Nameplate RPM 3510, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.1/0.60 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 3001-3600, CE, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 11.25
- Package Height: 10.00
- Package Weight: 22.30
Product info last updated on February 16, 2026 5:36am UTC
Category: Motors
