Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1720 Nameplate RPM MPN:31LH54
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9096281

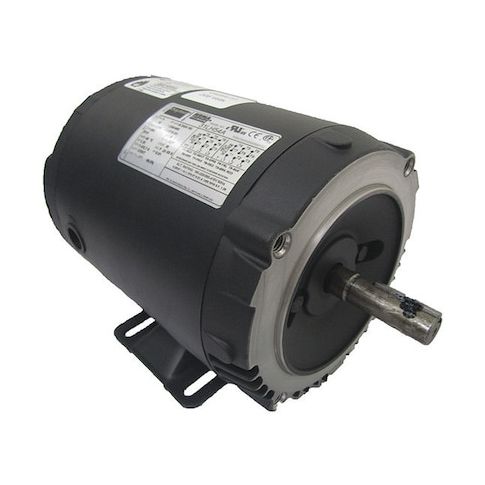

Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1720 Nameplate RPM
This 1/4 HP three-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial use. Its 56C frame and open drip proof motor enclosure make it suitable for environments where exposure to dust and moisture is a concern. With a nameplate RPM of 1720 and a maximum ambient temperature of 40 degrees C, this motor can handle continuous duty cycles. Its high efficiency and durable ball bearings ensure reliable performance and extended motor life. Ideal for use in conveyor systems, pumps, and other equipment, this motor offers a cost-effective solution for industrial applications.
Top product features:
- Three-phase operation
- Open drip-proof motor enclosure design
- Ball motor bearings
Top product applications:
- Pumps for water treatment and irrigation systems
- Fans for commercial and industrial ventilation
- Conveyors and material handling systems for manufacturing and warehousing
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/4 HP, Nameplate RPM 1720, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.0/0.50 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 69.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.75
- Package Width: 18.25
- Package Height: 12.25
- Package Weight: 23.00
Product info last updated on February 11, 2026 11:25am UTC
Category: Motors
