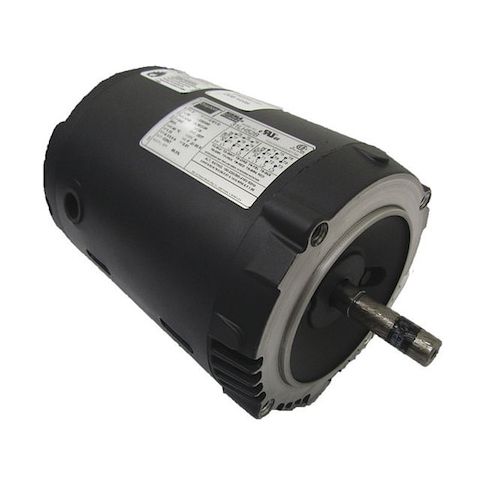

Three-Phase General Purpose Motor, 2 HP, 56C Frame, 230/460V AC Voltage, 1740 Nameplate RPM MPN:31LH52
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9096263
Three-Phase General Purpose Motor, 2 HP, 56C Frame, 230/460V AC Voltage, 1740 Nameplate RPM
The Dayton 2 HP three-phase general purpose motor is a reliable and efficient solution for a wide range of industrial applications. With its 56C frame and open drip proof motor enclosure design, this motor is perfect for use in harsh environments and can withstand high temperatures up to 40 degrees C. Its continuous duty rating and 86.5% nominal efficiency make it an ideal choice for applications such as pumps, fans, and conveyor systems. The motor's compact design and C-face mounting type make it easy to install and integrate into existing systems, providing a cost-effective and reliable solution for industrial processes.
Top product features:
- Three-Phase General Purpose Motor
- Operates at 1740 Nameplate RPM
- Has a Ball Motor Bearing Design
Top product applications:
- Industrial machinery
- Manufacturing processes
- Pumps and compressors
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1740, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.4/2.7 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.30
- Package Width: 8.80
- Package Height: 9.30
- Package Weight: 37.68
Product info last updated on February 14, 2026 8:38am UTC
Category: Motors
