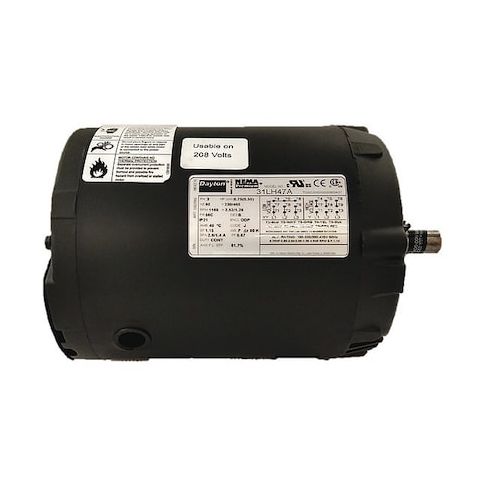

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 1150 Nameplate RPM MPN:31LH47
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9096211
Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 1150 Nameplate RPM
This 3/4 HP three-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial settings. With a nameplate RPM of 1150, this motor provides efficient and reliable operation. Its open drip-proof motor enclosure design ensures protection from dust and moisture, making it ideal for use in harsh environments. The motor's steel frame and ball bearings provide durability and long lifespan. Its continuous duty operation and 81.7% nominal efficiency make it a cost-effective choice for applications such as pumps, fans, and conveyors. Suitable for use in facilities with 230/460V AC voltage, it is also CE, CSA, and UL certified.
Top product features:
- Three-phase operation allows for efficient power distribution and use in industrial settings.
- Open drip-proof motor enclosure design provides protection from dust and moisture.
- Ball motor bearings enable smooth and quiet operation.
Top product applications:
- Pumps
- Conveyors
- Fans
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3/4 HP, Nameplate RPM 1150, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.6/1.3 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 77 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.90
- Package Width: 9.00
- Package Height: 8.90
- Package Weight: 35.50
Product info last updated on February 4, 2026 1:03am UTC
Category: Motors
