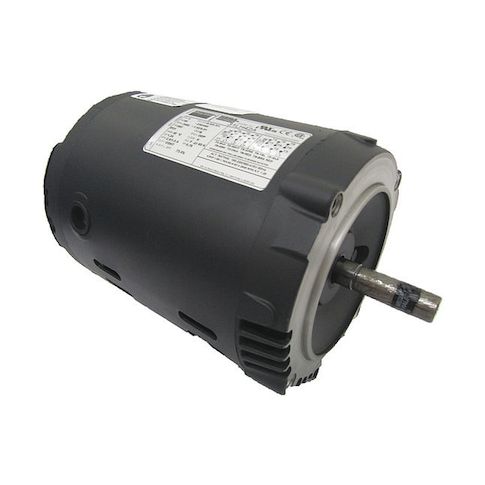

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 3490 Nameplate RPM MPN:31LH42
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9096166
Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 3490 Nameplate RPM
This Dayton 1/2 HP three-phase motor is a reliable and efficient solution for various industrial applications. Suitable for use in environments with high ambient temperatures, it features a steel frame and ball bearings for durability. With a nameplate RPM of 3490 and a voltage range of 230/460V AC, it can handle demanding tasks. The motor's open drip-proof enclosure design provides excellent protection against dust and moisture. Ideal for use in manufacturing, pumping, and conveyor systems, this motor offers continuous duty and a high service factor, making it a valuable addition to any industrial setup.
Top product features:
- Three-phase design for efficient power distribution
- Open drip-proof motor enclosure for protection against dust and moisture
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pumps and fans
- Conveyors and material handling equipment
- Power tools and machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/2 HP, Nameplate RPM 3490, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.6/0.81 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 73.4 Percent, Continuous Duty, 3001-3600, CE, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.25
- Package Width: 11.00
- Package Height: 10.00
- Package Weight: 23.60
Product info last updated on March 4, 2026 10:08am UTC
Category: Motors
