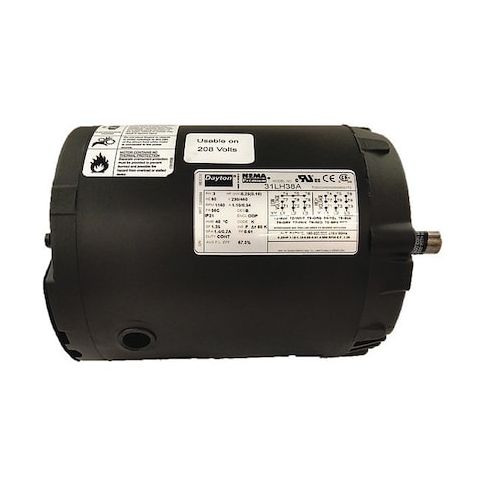

Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1160 Nameplate RPM MPN:31LH38
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9096123
Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1160 Nameplate RPM
The Dayton 1/4 HP Three-Phase General Purpose Motor is a reliable and efficient solution for a variety of applications. Suitable for continuous duty, this motor is ideal for use in manufacturing, processing, and other industrial environments. Its open drip-proof enclosure design and ball bearings ensure smooth operation and extended lifespan. The motor's 67.5% nominal efficiency reduces energy costs and minimizes environmental impact. With a service factor of 1.35 and a maximum ambient temperature of 40°C, this motor can handle demanding tasks with ease. Perfect for applications such as conveyor systems, pumps, and fans, this motor delivers dependable performance and value.
Top product features:
- Three-phase design for use in industrial applications
- Open drip-proof motor enclosure for protection from dust and water
- Ball bearings for reduced friction and increased motor lifespan
Top product applications:
- Industrial conveyor belt systems
- Pumps and water treatment plants
- Power tools and machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/4 HP, Nameplate RPM 1160, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.1/0.55 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 67.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 11.25
- Package Height: 10.25
- Package Weight: 24.70
Product info last updated on March 7, 2026 12:41am UTC
Category: Motors
