Three-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 230/460V AC Voltage, 1760 Nameplate RPM MPN:31LH33
Free Shipping
In Stock

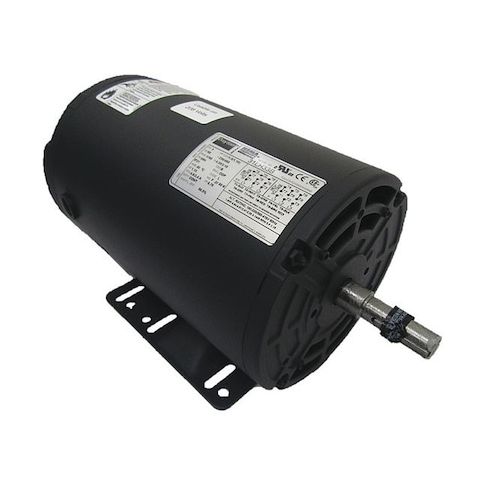

This 1.5 HP three-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial machinery, pumps, and fans. With a 56H frame and 230/460V AC voltage, it offers efficient operation and reliable performance. The motor's open drip-proof enclosure design protects against dust and water, while its rigid base mounting ensures stable operation. Suitable for continuous duty, it's ideal for applications requiring high torque and speed, such as conveyor systems, material handling equipment, and HVAC systems. Its compact design and high efficiency make it a valuable addition to any industrial setting.
Top product features:
- Three-phase operation for increased power and efficiency
- Open drip-proof motor enclosure design for improved protection against environmental contaminants
- Ball motor bearings for smoother and quieter operation
Top product applications:
- Pump applications
- Fans and blowers
- Conveyor systems
The DAYTON - 31LH33 is a General Purpose Motor, falling under the category of 3-Phase AC Motors. This type of motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It functions by converting electrical energy into mechanical energy to operate various types of machinery, making it versatile across different sectors such as manufacturing lines and HVAC systems.
Key Features of the DAYTON - 31LH33 General Purpose Motor:
- CC Number: The unique identifier CC029A assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: This motor is designed for continuous duty cycles under specified conditions, which may contribute to its operational efficiency.
- Frame: The structural component housing internal parts conforms to standard specifications with size 56H ensuring compatibility and interchangeability.
- Full Load Amps: At full capacity operation, this motor draws maximum current at 4.2/2.1 A which helps determine power supply requirements for safe operation.
- Inverter Rated: Yes – signifies that the motor can be powered by variable frequency drive allowing precise control over speed and torque
- Horsepower (HP): The motor's output power is rated at 1½ HP and may be suitable for certain heavy-duty operations in various industrial applications depending on specific requirements.
- Nominal Efficiency: Under specified operating conditions, the motor has demonstrated an efficiency rate of 86.5% during testing.
- Voltage Compatibility: This model is rated for operation within voltage levels ranging from 200-230/440V AC up to 208-230/460V AC. Please ensure compatibility with your system's voltage requirements.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 11.00
- Package Height: 9.50
- Package Weight: 38.60
