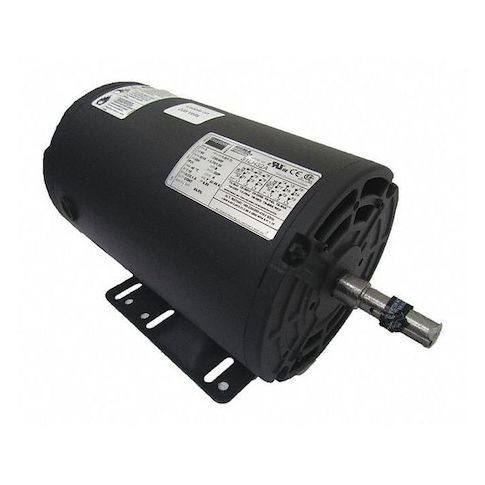

Three-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 230/460V AC Voltage, 3510 Nameplate RPM MPN:31LH32
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9096062
Three-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 230/460V AC Voltage, 3510 Nameplate RPM
This 1.5 HP three-phase general purpose motor from Dayton is ideal for a variety of applications, including industrial processes, manufacturing, and commercial settings. With a high efficiency rating of 84%, it provides cost-effective operation and reduced energy consumption. The motor's open drip-proof enclosure design and steel frame ensure durability and protection against environmental factors. Its rigid base mounting type and ball bearings provide smooth and reliable operation. Suitable for continuous duty, this motor is suitable for applications such as conveyor systems, pumps, and fans, and meets international safety standards including CE, CSA, and UL certifications.
Top product features:
- Three-Phase AC Voltage Capability
- Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial conveyor systems
- Pump and fan applications
- Material handling equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3510, Frame 56H, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 3.7/1.85 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CE, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.25
- Package Width: 11.00
- Package Height: 9.75
- Package Weight: 30.00
Product info last updated on February 26, 2026 6:01pm UTC
Category: Motors
