Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56 Frame MPN:30PT91
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9090767

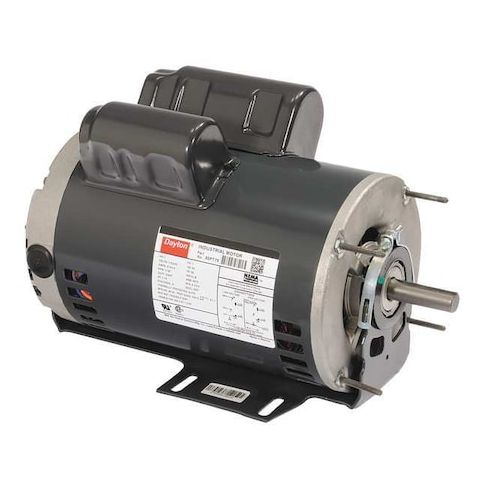

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56 Frame
The Dayton 1 hp Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in various industries, including manufacturing, HVAC, and food processing, this motor can handle continuous duty cycles and operates at a high level of performance. Its open drip-proof enclosure design makes it ideal for use in environments where exposure to dust and water is a concern. With a service factor of 1.15 and a maximum ambient temperature of 40 degrees C, this motor provides long-lasting reliability and can withstand demanding operating conditions.
Top product features:
- Capacitor-start/run design allows for efficient starting and running of the motor
- Single-phase operation enables the motor to be used in a variety of applications
- Open drip-proof enclosure design provides protection from dust and water spray
Top product applications:
- Pumps
- Compressors
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.9/4.6 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated Not Inverter Rated
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 37.50
Product info last updated on February 5, 2026 2:28pm UTC
Category: Motors
