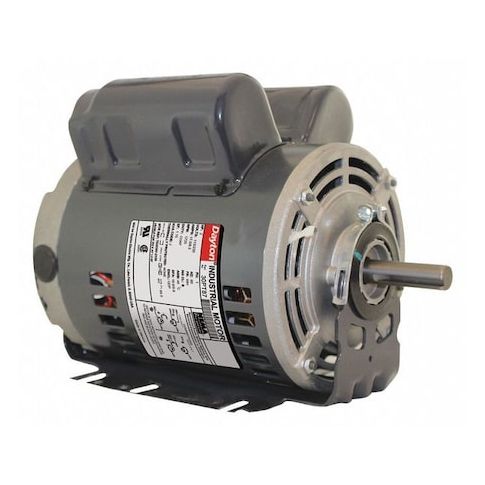

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 56H Frame MPN:30PT87
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9090742
Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 56H Frame
This 2 hp General Purpose Motor from Dayton is a reliable and efficient solution for a variety of applications, including industrial and commercial use. Designed for continuous duty, it features a capacitor-start/run design for optimal performance and a 1.725 RPM nameplate speed. The motor is rated for 115/230V AC voltage and has a service factor of 1.15, making it suitable for demanding environments. Its open drip proof enclosure provides protection against dust and water, and its cradle base mounting design allows for easy installation. Ideal for use in factories, warehouses, and other industrial settings.
Top product features:
- Capacitor-start/run design for efficient operation
- Single phase motor operation for use in a variety of applications
- Open drip proof motor enclosure for protection against dust and water
Top product applications:
- Industrial conveyor belt systems
- Pumps and water treatment systems
- Textile machinery
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 17.0/8.5 A, 56H Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated Not Inverter Rated
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 43.90
Product info last updated on March 23, 2026 9:12am UTC
Category: Motors
