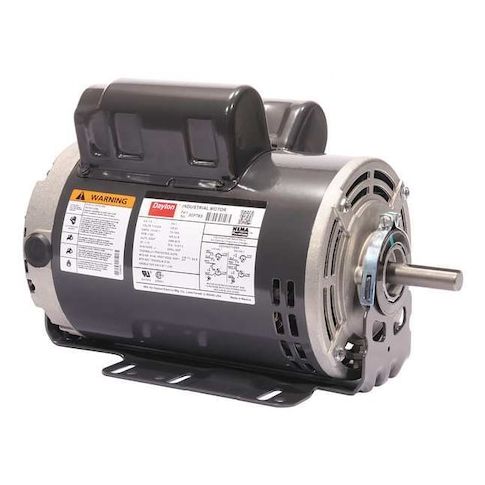

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 56H Frame MPN:30PT85
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9090724
Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 56H Frame
This 2-hp capacitor-start/run general purpose motor from Dayton is a reliable and efficient solution for a wide range of applications. Suitable for use in single-phase systems, this motor offers a nameplate RPM of 3,450 and a continuous duty cycle, making it ideal for applications that require consistent performance. With a 1.15 service factor and a maximum ambient temperature of 40 degrees C, this motor can handle demanding tasks. Its open drip-proof enclosure and cradle base mounting make it easy to integrate into existing systems, while its inverter non-rated design ensures compatibility with a variety of power sources.
Top product features:
- Capacitor-start/run design allows for efficient starting and running of the motor
- Single-phase motor design is suitable for a wide range of applications
- Open drip-proof enclosure design provides protection from dust and water splashes
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 17.3/8.7 A, 56H Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated Not Inverter Rated
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 39.00
Product info last updated on February 2, 2026 10:47am UTC
Category: Motors
