Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56 Frame MPN:30PT79
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9090681

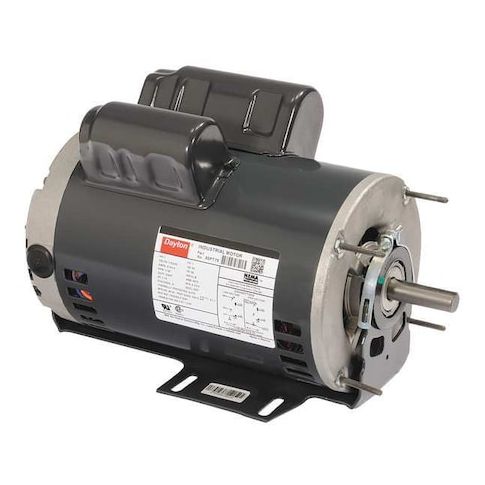

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56 Frame
The Dayton Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for single-phase use, this motor can be used in various settings, including industrial, commercial, and residential environments. Its 1 hp horsepower and 1,140 RPM nameplate speed make it ideal for applications that require moderate speed and power. The motor's open drip-proof design and continuous duty cycle ensure reliable operation in harsh environments. With its compact size and lightweight design, it's easy to install and maintain. Perfect for use in pumps, fans, and other equipment, this motor provides years of trouble-free service.
Top product features:
- Capacitor-start/run design for improved starting and running efficiency
- Single-phase operation for simple installation and control
- Open drip-proof enclosure design for protection against dust and water splashes
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.9/4.6 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated Not Inverter Rated
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 37.49
Product info last updated on March 18, 2026 4:20am UTC
Category: Motors
