Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56H Frame MPN:30PT71
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9090654

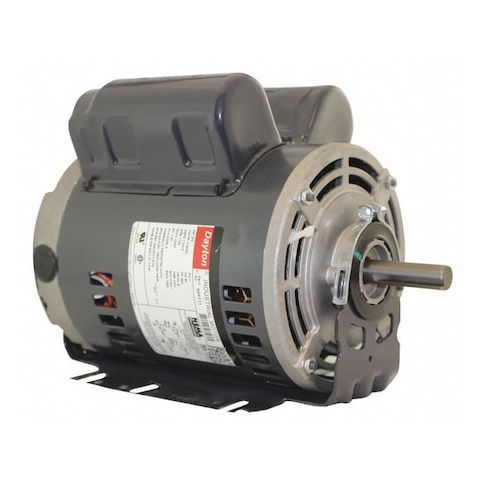

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56H Frame
This 3/4 hp Capacitor-Start/Run General Purpose Motor from Dayton is a reliable and efficient solution for various applications. Suitable for use in single-phase systems, it provides a consistent performance and long lifespan. With a nameplate RPM of 1,725 and a continuous duty cycle, it's ideal for industrial and commercial settings. The motor's open drip-proof design and cradle base mounting make it easy to integrate into existing systems. Its inverter-rated capability and thermal protection ensure smooth operation and extended motor life. Perfect for use in conveyor systems, pumps, and other machinery, it's a great addition to any industrial setup.
Top product features:
- Capacitor-start/run design provides efficient starting and running of the motor
- Single-phase operation allows for simple installation and control
- Open drip-proof enclosure design protects against dust and water spray
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.0/3.5 A, 56H Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated Not Inverter Rated
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 27.00
Product info last updated on February 2, 2026 1:44pm UTC
Category: Motors
