Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/230V AC Voltage, 56 Frame MPN:30PT58
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9090575

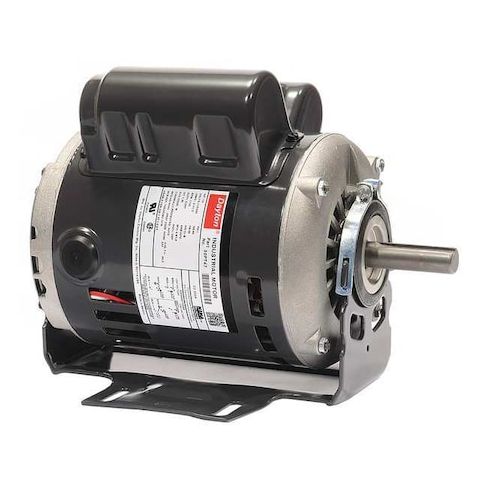

Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/230V AC Voltage, 56 Frame
This 1/3 hp Capacitor-Start/Run General Purpose Motor from Dayton is a reliable and efficient solution for various applications. Suitable for use in single-phase systems, this motor offers a nameplate RPM of 1,140 RPM and a voltage range of 115/230V AC. Its compact 56 frame design and open drip-proof enclosure make it ideal for use in industrial and commercial settings. With a motor service factor of 1.35 and a maximum ambient temperature of 40 degrees C, this motor can handle continuous duty cycles. Perfect for applications such as pumps, fans, and conveyor systems, this motor provides a cost-effective and durable solution.
Top product features:
- Capacitor-start/run design allows for efficient and reliable operation
- Single-phase motor design provides a cost-effective solution for general purpose applications
- Open drip-proof enclosure design protects the motor from dust and debris
Top product applications:
- Pumps
- Conveyors
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.4/2.3 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated Not Inverter Rated
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 25.60
Product info last updated on February 3, 2026 4:06pm UTC
Category: Motors
