Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:103838.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9078912
Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 56C Frame

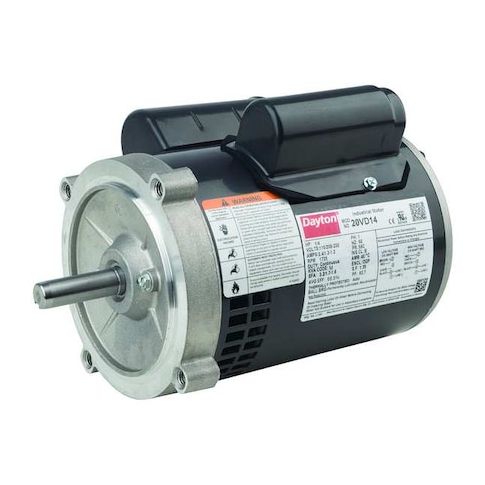

The Dayton Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a variety of applications. Suitable for continuous duty cycles, this motor is perfect for use in residential and commercial settings, such as water pumps, fans, and blowers. With a high service factor of 1.35, it can handle demanding tasks with ease. The motor's open drip-proof design and CW/CCW rotation make it versatile and adaptable to different mounting requirements. Its compact size and lightweight design also make it easy to install and maintain, reducing downtime and increasing productivity.
Top product features:
- Capacitor-start/run design allows for efficient operation at low horsepower
- Single-phase motor design enables use with standard household electrical systems
- Open drip-proof enclosure protects the motor from dust and water splashes
Top product applications:
- Pumps and water treatment equipment
- Fans and blowers
- Conveyor belts and material handling systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 3.8/1.9-1.9 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.10
- Package Width: 9.90
- Package Height: 9.90
- Package Weight: 18.75
Product info last updated on January 23, 2026 8:17am UTC
Category: Motors
