Capacitor-Start/Run General Purpose Motor, 1/4 hp HP, 115/208-230V AC Voltage, 56 Frame MPN:103837.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9078903
Capacitor-Start/Run General Purpose Motor, 1/4 hp HP, 115/208-230V AC Voltage, 56 Frame

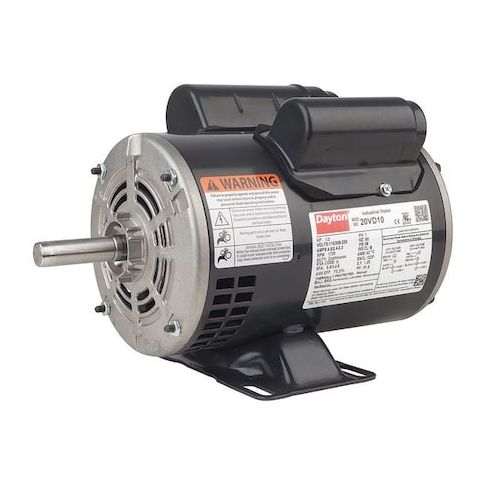

This 1/4 hp general purpose motor from Dayton is designed for a wide range of applications, including residential and light commercial use. Its capacitor-start/run design provides efficient and reliable operation, while its 1,725 RPM nameplate speed makes it suitable for applications requiring moderate speed. The motor's 56 frame size and single-phase operation make it easy to integrate into existing systems. With a continuous duty cycle and operating temperature up to 40 degrees C, this motor is ideal for use in environments with moderate temperatures and load requirements. Its compact design and open drip-proof enclosure also make it a great choice for space-constrained applications.
Top product features:
- Capacitor-start/run design provides efficient starting and continuous operation
- Operates at 1,725 RPM for high-speed applications
- Open drip-proof enclosure design protects against dust and water ingress
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 2.4/1.2-1.2 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.10
- Package Width: 9.90
- Package Height: 9.90
- Package Weight: 17.00
Product info last updated on February 28, 2026 6:24am UTC
Category: Motors
