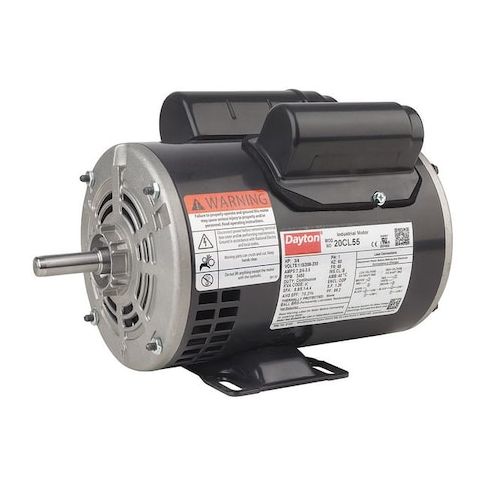

Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 48 Frame MPN:103812.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9077546
Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 48 Frame
The Dayton Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/208-230V AC environments, this motor is ideal for industrial and commercial settings where a robust and continuous-duty motor is required. With a nameplate RPM of 1,725 and a motor service factor of 1.25, this motor provides reliable performance and can operate in temperatures up to 40 Degrees C. Its open drip-proof enclosure design and CW/CCW shaft rotation make it suitable for various applications, including manufacturing, assembly, and material handling.
Top product features:
- Capacitor-start/run design allows for efficient starting and running of the motor
- Single-phase motor operation provides a simple and cost-effective solution for various applications
- Open drip-proof enclosure design protects the motor from dust and water splashes
Top product applications:
- Pumps for residential and commercial water supply systems
- Conveyors and other machinery in light industrial settings
- Fans and blowers in commercial and residential HVAC systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.6/2.4-2.3 A, 48 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 11.30
- Package Height: 10.50
- Package Weight: 23.60
Product info last updated on March 31, 2026 9:28am UTC
Category: Motors
