Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 48 Frame MPN:103806.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9077485
Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 48 Frame

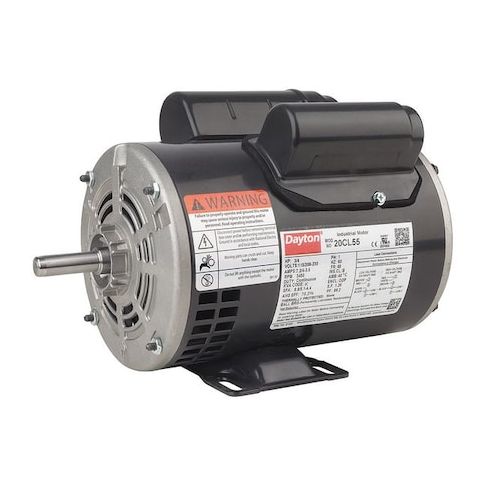

This 1/2 hp capacitor-start/run motor from Dayton is a reliable and efficient choice for a variety of applications. Suitable for use in 115/208-230V AC environments, it operates at 3,450 RPM and features a rigid base mounting design. With a service factor of 1.25 and a maximum ambient temperature of 40°C, it can handle continuous duty cycles. The motor's open drip-proof enclosure protects against dust and water, making it ideal for use in industrial settings, such as manufacturing facilities, warehouses, and commercial kitchens. Its compact size and lightweight design also make it suitable for use in smaller applications.
Top product features:
- Capacitor-start/run design provides improved starting torque and efficiency
- Single-phase operation allows for use in a variety of applications
- Open drip-proof enclosure design protects against dust and water spray
Top product applications:
- Industrial control panels
- Pumps and water treatment systems
- Conveyor systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.4/2.4-2.2 A, 48 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.10
- Package Width: 9.80
- Package Height: 10.20
- Package Weight: 17.60
Product info last updated on January 22, 2026 5:16am UTC
Category: Motors
