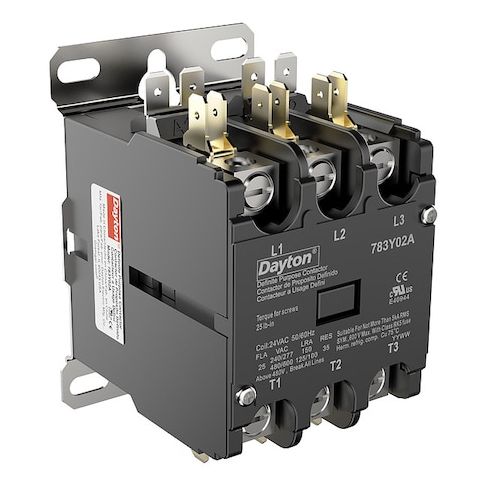

Definite Purpose Magnetic Contactor, 24V AC, 3 P, Non-Reversing, 3 Phase, Box Lug MPN:783Y02
The Dayton 783Y02 Definite Purpose Magnetic Contactor is a versatile and reliable tool for managing and automating machinery operations in various sectors such as HVAC, data processing, and manufacturing. It controls the flow of power in heavy-duty applications by responding to electrical impulses, allowing or interrupting power supply based on need. With its ability to control up to two additional secondary circuits and operate within a 24V AC coil voltage range, this contactor offers flexibility and convenience. Suitable for controlling motors with varying horsepower, it's an ideal solution for industries requiring efficient and reliable power management.
Top product features:
- Operates by responding to electrical impulses to control the flow of power in heavy-duty applications.
- Has the ability to control up to two additional secondary circuits for managing multiple electrical loads or signals.
- Constructed with Silver Cadmium Oxide contacts that influence conductivity, durability, and resistance to corrosion.
Top product applications:
- HVAC management
- Data processing automation
- Manufacturing machinery operations
The DAYTON - 783Y02 is a Definite Purpose Magnetic Contactor, an industrial electrical device that controls the flow of power in heavy-duty applications. It operates by responding to electrical impulses, either allowing or interrupting power supply based on need. This tool is commonly used for managing and automating machinery operations across various sectors such as HVAC, data processing, and manufacturing.
- Auxiliary Contact Module Capacity: The contactor can control up to two additional secondary circuits providing flexibility in managing multiple electrical loads or signals.
- Coil Voltage: Rated for operation within the specified coil voltage range of 24V AC, suitable for controlling power flow in industrial and commercial applications.
- Contact Material: Constructed with Silver Cadmium Oxide contacts that influence conductivity, durability, and resistance to corrosion.
- Electrical Operating Durability: Has been tested for electrical operation up to 200000 cycles under standard testing conditions.
- Frequency Compatibility: Compatible with electrical cycles per second measured at a frequency of 50/60 Hz
- Full Load Amps-Inductive & Resistive: Rated for continuous operation while controlling both inductive (25 A) and resistive (35 A) loads within specified ranges
- Horsepower Control Range: Suitable for controlling motors with varying horsepower, dependent on single-phase or three-phase power supply ranging from specifications such as 2 hp @ Single Phase -120V AC up to 20 hp @ Three Phase -600V AC
- Mechanical Operating Durability: Tested mechanical operating durability is rated up to performing approximately up to 500000 cycles under standard testing conditions
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 3.30
- Package Height: 2.90
- Package Weight: 1.10
