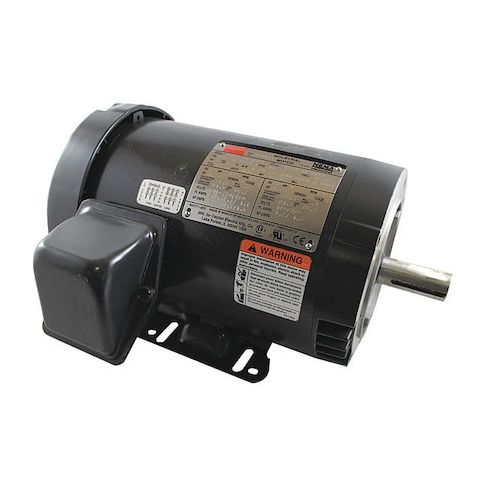

Three-Phase General Purpose Motor, 1 HP, 143-5TC/56HCZ Frame, 230/460V AC Voltage MPN:31TU33
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8571412
Three-Phase General Purpose Motor, 1 HP, 143-5TC/56HCZ Frame, 230/460V AC Voltage
This Dayton three-phase general purpose motor is designed for continuous duty applications, offering efficient and reliable performance. With a nameplate RPM of 1,155 and a motor thermal protection of none, it's ideal for use in a variety of settings, including industrial and commercial environments. The totally enclosed fan cooled motor enclosure design provides added protection and durability, while the rigid base and C-face motor mounting type ensure easy installation. Suitable for applications such as pumps, fans, and conveyor systems, this motor delivers a nominal efficiency of 82.5 percent and a maximum ambient temperature of 40 degrees C.
Top product features:
- Three-phase design for efficient operation
- Totally enclosed fan cooled motor enclosure for reduced noise and increased durability
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Air Compressor
- Pumps and Pumps Accessories
- Conveyor Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1,155, Frame 143-5TC/56HCZ, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.5/1.8 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.50
- Package Height: 9.10
- Package Weight: 35.00
Product info last updated on March 15, 2026 12:00pm UTC
Category: Motors
