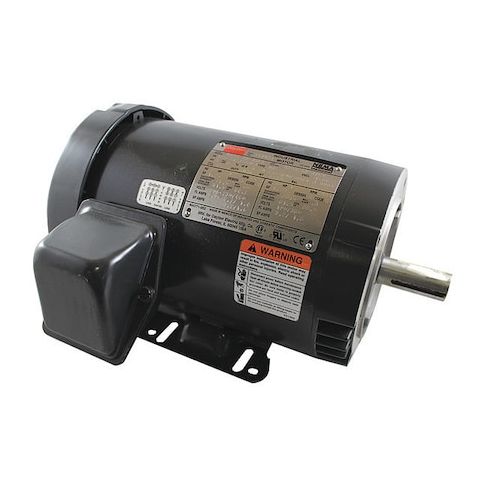

Three-Phase General Purpose Motor, 1 HP, 143-5TC/56HCZ Frame, 230/460V AC Voltage MPN:31TU32
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8571403
Three-Phase General Purpose Motor, 1 HP, 143-5TC/56HCZ Frame, 230/460V AC Voltage
This three-phase general purpose motor is designed for heavy-duty applications, featuring a robust totally enclosed fan cooled motor enclosure and rigid base for optimal stability. With a high efficiency rating of 85.5% and continuous duty operation, it's perfect for industrial settings such as manufacturing, processing, and material handling. Its compact 143-5TC/56HCZ frame and 1 HP rating make it suitable for a wide range of uses, including conveyor systems, pumps, and fans. With a 1.25 service factor and ball bearings for smooth operation, this motor is built to last and provide reliable performance in demanding environments.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design provides a safe and durable environment for the motor.
- Ball Motor Bearings ensure smooth and quiet operation.
- Continuous Duty operation allows for prolonged use without overheating.
Top product applications:
- Pumps and water circulation systems
- Fans and ventilation systems
- Conveyor belts and material handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1755, Frame 143-5TC/56HCZ, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.0/1.5 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.50
- Package Height: 9.10
- Package Weight: 35.00
Product info last updated on February 7, 2026 2:35pm UTC
Category: Motors
