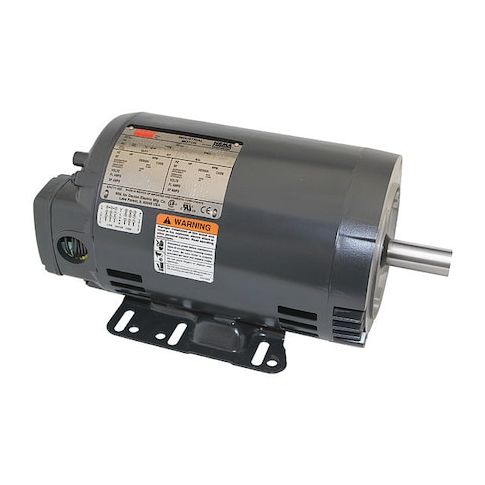

Three-Phase General Purpose Motor, 3 HP, 143-5TC/56HCZ Frame, 230/460V AC Voltage MPN:31TU29
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8571376
Three-Phase General Purpose Motor, 3 HP, 143-5TC/56HCZ Frame, 230/460V AC Voltage
This three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. With a 3 HP rating and 230/460V AC voltage, it can handle demanding tasks while providing efficient operation. The motor features a rigid base, C-face mounting, and ball bearings for smooth and durable performance. Its high service factor and continuous duty rating make it ideal for applications requiring long-term reliability. Suitable for use in environments up to 40°C, this motor is perfect for factories, warehouses, and other industrial settings where high power and efficiency are essential.
Top product features:
- Three-phase operation for efficient power distribution
- Ball motor bearings for reduced friction and increased motor lifespan
- CW/CCW motor shaft rotation for flexibility in installation and application
Top product applications:
- Industrial HVAC Systems
- Pumping Stations
- Manufacturing Lines
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 3490, Frame 143-5TC/56HCZ, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.4/3.7 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.50
- Package Height: 9.10
- Package Weight: 35.00
