Fan Mtr, 3/4HP, 1140, 220-230/460 MPN:31TR59
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8571132
Fan Mtr, 3/4HP, 1140, 220-230/460

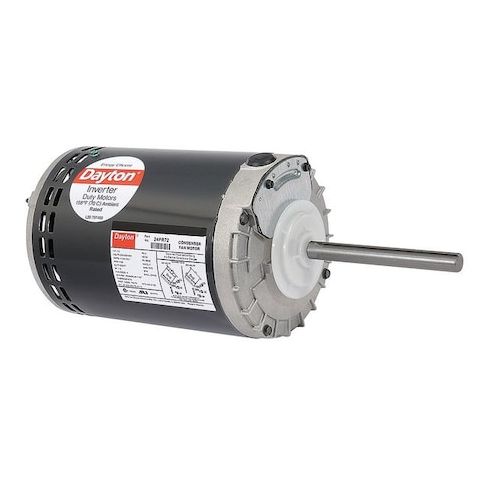

This Dayton 3/4HP three-phase condenser fan motor is designed for continuous operation in a variety of applications, including heating and cooling systems, air handling units, and ventilation systems. Its high efficiency and reliability make it an ideal choice for demanding environments. With a nameplate RPM of 1,140 and a 56Z frame, this motor provides smooth and quiet operation. Its open air over design and belly band mounting make it easy to install and maintain. Suitable for use in 208-230/460V AC systems, this motor is a reliable and cost-effective solution for a wide range of commercial and industrial applications.
Top product features:
- Three-phase operation
- Continuous duty cycle
- 56Z frame design
Top product applications:
- HVAC Systems
- Condenser Units
- Air Handling Units
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 2.8-2.8/1.4 A Full Load Amps, 56Z Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band, Motor Mounting Position Horizontal/Vertical Shaft Up, Shaft Length 6 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 31.50
Product info last updated on March 28, 2026 5:05pm UTC
Category: Motors
