Capacitor-Start/Run General Purpose Motor, 1 hp HP, 56 Frame, 115/230V AC Voltage MPN:30PT74
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8565252

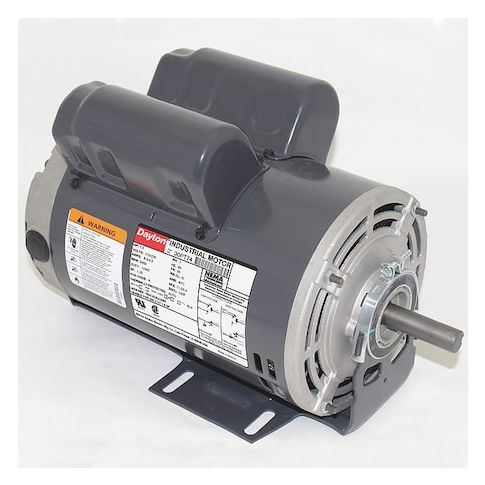

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 56 Frame, 115/230V AC Voltage
This Dayton 1 hp capacitor-start/run motor is a reliable and efficient choice for a wide range of applications, including industrial and commercial settings. Its single-phase design and 115/230V AC voltage make it suitable for use in various environments. With a nameplate RPM of 3,450 and a motor service factor of 1.25, this motor can handle demanding tasks with ease. Its open drip-proof enclosure and cradle base mounting make it easy to integrate into existing systems. Perfect for applications such as fans, pumps, and conveyor systems, this motor offers continuous duty cycle and thermal protection for added reliability.
Top product features:
- Capacitor-start/run motor design provides efficient starting and running capabilities.
- Single-phase motor operation allows for simple installation and control.
- Open drip-proof motor enclosure design protects against dust and water ingress.
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.3/4.3 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated Not Inverter Rated
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 29.00
Product info last updated on February 9, 2026 8:11pm UTC
Category: Motors
