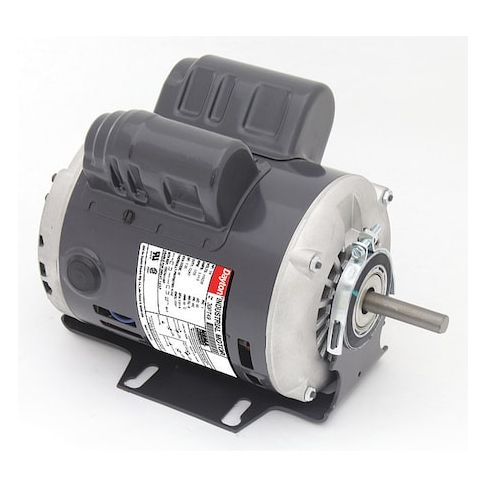

MTR, CS/CR, ODP, 1/4 HP, 1725, 48Z, EFF 68.5 MPN:30PT49
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8565216
MTR, CS/CR, ODP, 1/4 HP, 1725, 48Z, EFF 68.5
This Dayton General Purpose Motor is a reliable and efficient choice for a wide range of applications, including industrial equipment, machinery, and commercial appliances. With a single phase design and capacitor-start/run technology, it provides a high power-to-weight ratio and long motor life. The motor's 1/4 HP rating and 1725 RPM nameplate speed make it suitable for low-to-medium speed applications. Its open drip-proof design and continuous duty cycle ensure reliable operation in harsh environments, while its inverter-rated designation allows for use with variable frequency drives. Ideal for applications requiring low noise and vibration, this motor is a cost-effective solution for many industries.
Top product features:
- Single Phase operation
- Motor Design Capacitor-Start/Run for efficient starting and running
- Insulation Class B for reliable operation in a variety of environments
Top product applications:
- Pumps and Circulation Systems
- Fans and Blowers
- Conveyors and Material Handling
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.1/1.5 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated Not Inverter Rated
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 15.59
Product info last updated on February 3, 2026 3:25am UTC
Category: Motors
