Washdown Motor, TENV, 1 HP, 1750 rpm, 56C MPN:48ZJ94
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7469430

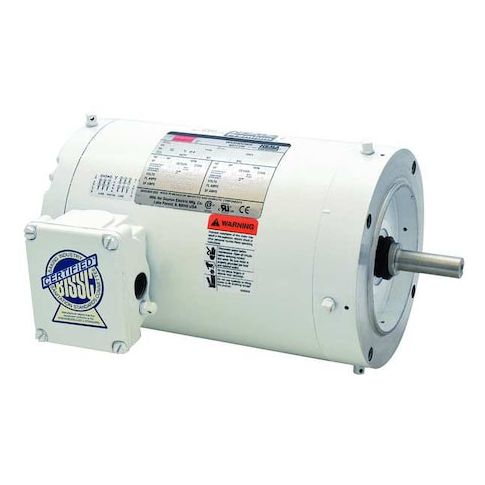

Washdown Motor, TENV, 1 HP, 1750 rpm, 56C
The Dayton Washdown Motor is a reliable and efficient solution for applications requiring high cleanliness and resistance to harsh environments. With a totally enclosed non-ventilated (TENV) design, this motor is ideal for use in food processing, pharmaceutical, and other industries where contamination must be prevented. Its continuous duty cycle and NEMA Design B rating ensure smooth operation and long lifespan. The motor's three-phase design and 1 HP rating make it suitable for a wide range of applications, from small machinery to larger industrial equipment. Its compact size and easy mounting options make installation a breeze.
Top product features:
- Operates at a maximum ambient temperature of 40 Degrees C
- Has a continuous duty cycle
- Is designed to be totally enclosed and non-ventilated
Top product applications:
- Food Processing Equipment
- Pump and Fan Systems
- Water Treatment Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, Voltage 230/460V AC, Full Load Amps 3.1/1.5 A, 56C Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Inverter Rating Not Applicable, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.40
- Package Height: 19.50
- Package Weight: 41.00
Product info last updated on February 7, 2026 1:43pm UTC
Category: Motors
