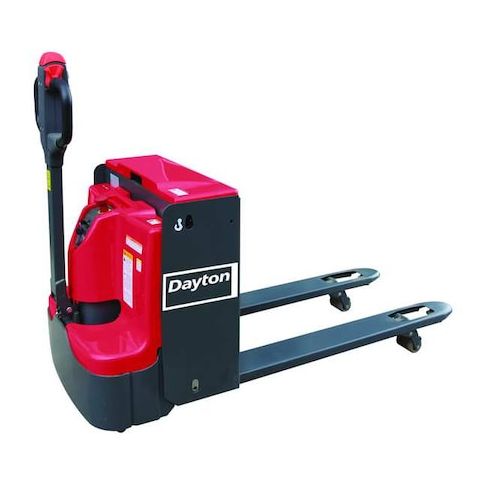

Electric Pallet Jack (478N31), 4, 000 lb Capacity, 48 in Forks MPN:478N31

• The DAYTON 478N31 Powered Pallet Jack is an electric pallet handling unit designed for lifting and transporting palletized loads up to 4,000 lb. It operates on a 24V system powered by two sealed lead-acid batteries and includes an onboard 110V AC charger. The unit has a welded steel frame with a powder-coated finish and features an ergonomic handle with electric lift and drive controls. Polyurethane wheels and rollers provide smooth operation on concrete and wood surfaces.

  Key Features:

  • - Load Capacity: 4,000 lb
  • - Power Source: 24V electric with sealed lead-acid batteries (160 Ah)
  • - Run/Charge Time: 5 hr run time
  • 4 hr charge time
  • - Construction: Steel frame with powder-coated finish
  • - Fork Dimensions: 48 in L × 6 3/8 in W × 2 in thick
  • 27 in overall fork width
  • - Lifting Range: 3 in minimum to 7 3/4 in maximum height
  • - Wheels: 9 in polyurethane steer wheels
  • 2 7/8 in polyurethane load wheels
  • - Turning Radius: 4 ft 11 in
  • steering arc 180°
  • - Handle Type: Ergonomic steel and plastic handle
  • - Charger Type: Onboard, 110V AC plug-in
  • - Overall Dimensions: 70 in L × 27 in W × 52 in H
  • weight 1,000 lb
  • - Standards: CE certified
