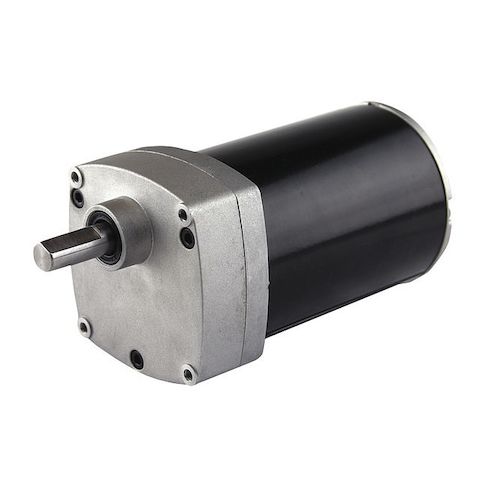

AC Gearmotor, 14 in-lb Max. Torque, 139 RPM Nameplate RPM, 115V AC Voltage, 1 Phase MPN:453R97
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6551437
AC Gearmotor, 14 in-lb Max. Torque, 139 RPM Nameplate RPM, 115V AC Voltage, 1 Phase
This AC gearmotor from Dayton is designed for applications requiring precise control and low-speed operation. Its 14 in-lb maximum torque and 139 RPM nameplate speed make it suitable for use in packaging, material handling, and other industries where gentle movement is necessary. The motor's permanent split capacitor design and totally enclosed nonventilated enclosure provide durability and protection from environmental factors. With a gear ratio of 12.1:1 and parallel shaft orientation, this gearmotor is ideal for applications such as conveying, sorting, and indexing. Its compact design and low weight also make it easy to integrate into existing systems.
Top product features:
- Rotates at 139 RPM
- Provides 14 in-lb maximum torque
- Operates at 115V AC voltage
Top product applications:
- Automotive applications such as windshield wiper motors
- Conveyor systems in manufacturing facilities
- Low-power fans in residential or commercial settings
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Nonventilated, Nameplate Speed 139 RPM, Maximum Torque 14 in-lb, Overhung Load Capacity 50 lb, Rotation CW/CCW, Output Shaft Height 2.07 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 12.1:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class B, Compatible Capacitor Manufacturer Part Number 2MDV4
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.40
- Package Width: 5.60
- Package Height: 5.80
- Package Weight: 6.05
Product info last updated on March 6, 2026 10:06am UTC
Category: Motors
