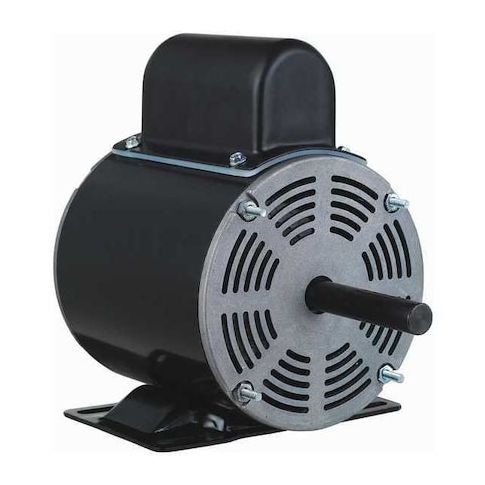

Direct Drive Blower Motor, 1/15 hp MPN:GGS_47830
Direct Drive Blower Motor, 1/15 hp
Boost your HVAC system's efficiency with the Dayton 1/15 hp Direct Drive Blower Motor. This single-phase motor is designed for permanent split capacitor applications, providing reliable operation in a wide range of environments. With a nameplate RPM of 1,650 and a duty cycle of continuous, this motor is perfect for use in residential and commercial settings. Its compact design and totally enclosed air-over enclosure make it an ideal choice for tight spaces. The motor's auto thermal protection and insulation class B ensure safe and reliable operation. Suitable for use in systems running at 115V AC, this motor is a reliable solution for your HVAC needs.
Top product features:
- Direct Drive design for improved efficiency and reliability
- Permanent Split Capacitor motor design for smooth and quiet operation
- Totally Enclosed Air-Over motor enclosure for protection from dust and debris
Top product applications:
- HVAC systems for residential and commercial buildings
- Industrial ventilation systems for factories and warehouses
- Air handling units for heating, ventilation, and air conditioning (HVAC) applications
Definite Purpose HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/15 hp HP, Nameplate RPM 1,650 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1.2 A, Non-Standard Frame, Replacement For Dayton 1ZCN7D, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.76
- Package Width: 9.06
- Package Height: 9.64
- Package Weight: 10.90
Product info last updated on February 3, 2026 11:08pm UTC
Category: Motors
