Three-Phase General Purpose Motor, 1 HP, 56H Frame, 208-230/460V AC Voltage, 1, 155 Nameplate RPM MPN:48ZJ85
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6298419

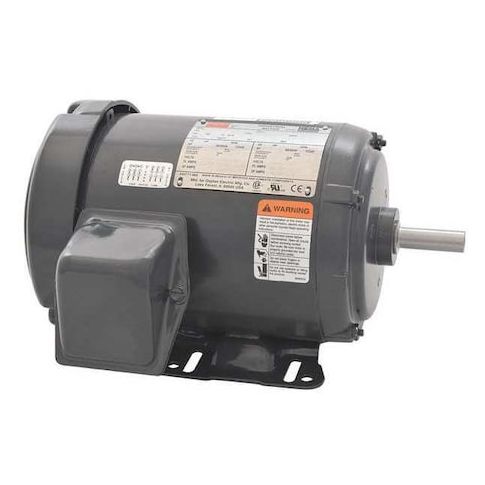

Three-Phase General Purpose Motor, 1 HP, 56H Frame, 208-230/460V AC Voltage, 1, 155 Nameplate RPM
This 1 HP, 56H frame, three-phase general purpose motor from Dayton is designed for a wide range of industrial applications. With a nameplate RPM of 1,155 and a totally enclosed fan cooled motor enclosure, it provides reliable operation in harsh environments. Suitable for continuous duty, this motor offers high efficiency at 82.5% and a service factor of 1.25. Its rigid base mounting type and steel frame ensure stability and durability. Ideal for use in factories, warehouses, and other industrial settings, this motor is a reliable choice for applications such as conveyor systems, pumps, and fans.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design provides protection from environmental factors
- Ball Motor Bearings ensure smooth and quiet operation
- Continuous Duty operation allows for constant use without overheating
Top product applications:
- Industrial Automation
- Pumping Systems
- Conveying and Material Handling
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1,155, Frame 56H, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 3.5/1.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1,101-1,200, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.60
- Package Height: 9.20
- Package Weight: 41.50
Product info last updated on February 3, 2026 6:18am UTC
Category: Motors
