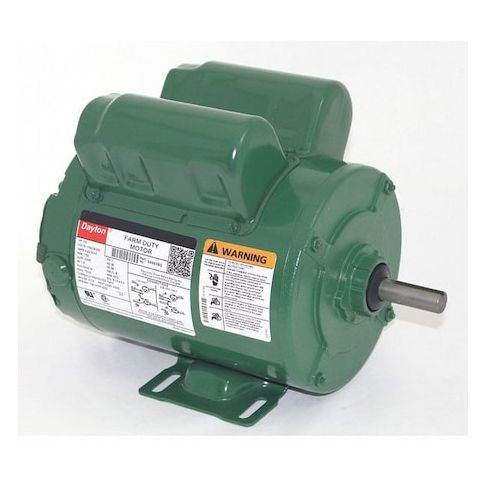

Agricultural Fan Motor, Capacitor-Start/Run, 1/2 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame MPN:3K663
Agricultural Fan Motor, Capacitor-Start/Run, 1/2 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame
This Dayton Agricultural Fan Motor is a reliable and efficient solution for various applications, including ventilation, drying, and cooling in agricultural settings. With a 1/2 HP capacitor-start/run design, it provides consistent performance and long motor life. Its totally enclosed air-over design protects against dust and moisture, ensuring smooth operation in harsh environments. The motor's continuous duty cycle and rigid base mounting make it ideal for applications requiring sustained airflow. Suitable for use in greenhouses, barns, and other agricultural facilities, this motor offers a reliable and cost-effective solution for maintaining optimal temperature and humidity levels.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure Design
- Motor Shaft Rotation is CW/CCW
- Single Phase Motor Design with Capacitor-Start/Run Capability
Top product applications:
- Dairy Barns
- Greenhouses
- Barn Fans
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.6/2.6-2.4 A, 56 Frame, 60 Hz Hz, Motor Service Factor 1.4, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 12.00
- Package Height: 11.00
- Package Weight: 40.50
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on April 11, 2026 3:19pm UTC
Category: Motors
