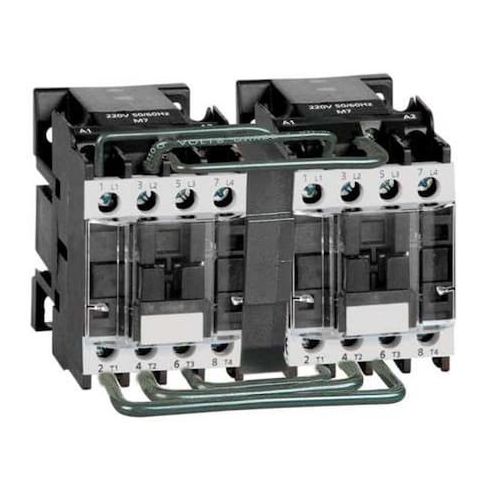

IEC Magnetic Contactor, 1NO, 240V AC, 3 P, Reversing, Screw MPN:6EAW9
Free Shipping
In Stock
The DAYTON IEC Magnetic Contactor is a reliable and efficient switching device ideal for a variety of industrial and commercial applications. With its 3-pole reversing capability and 240V AC coil, it can handle demanding loads and provide consistent performance. This contactor is suitable for use in applications such as motor control, conveyor systems, and HVAC systems, and its compact design makes it easy to integrate into existing systems. By providing a reliable and efficient switching solution, the DAYTON IEC Magnetic Contactor helps to increase productivity, reduce downtime, and improve overall system performance.
Top product features:
- The DAYTON IEC Magnetic Contactor has a 3-pole, reversing action.
- It includes one auxiliary normally open contact.
- It uses screw terminals for wiring.
Top product applications:
- Motor Control Center
- General Purpose Control
- Drive Control
The DAYTON IEC Magnetic Contactor is an electrically operated switching device (IEC standard) rated for operation within the specified voltage and current ranges. It is a 3-pole, reversing contactor with a 240 V AC coil, rated for use at 50/60 Hz frequency as specified. The unit includes one auxiliary normally open contact and uses screw terminals for wiring. It does not include built-in surge suppression features. The unit is supplied without an enclosure
- suitable for installation in appropriate enclosures per application requirements.
- Contactor type: IEC Magnetic Contactor (IEC standard)
- - Action: Reversing
- - Reversing capability: Reversing
- - Poles: 3
- - Coil Voltage: 240 V AC
- - Auxiliary contacts: 1NO (includes one auxiliary contact)
- - Auxiliary contact form: 1NO
- - Frequency: 50/60 Hz
- - Dimensions (W x H x D): 4.13 in x 4.13 in x 3.18 in
- - Width: 4.133 in
- Height: 4.13 in
- Depth: 3.18 in
- - Terminal connection type: Screw
- - Enclosure: Supplied without enclosure
- suitable for installation in appropriate enclosures per application requirements
- - Standards: UL Listed
- - NEMA enclosure rating: No Enclosure
- - Includes auxiliary contacts: Yes
- - Number of auxiliary contacts: 1
- - Full Load Amps (Inductive/Resistive): 12 A / 25 A
- - Full Load Current (Inductive/Resistive): 12 A / 25 A
- - HP @ various voltages (single/three-phase): 1 hp @ 120V
- 2 hp @ 230V
- 2 hp @ 240V
- 3 hp @ 208V (3-phase)
- 3 hp @ 240V (3-phase)
- 7.5 hp @ 480V (3-phase)
- 10 hp @ 575V (3-phase)
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 3.30
- Package Height: 5.00
- Package Weight: 1.70
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
