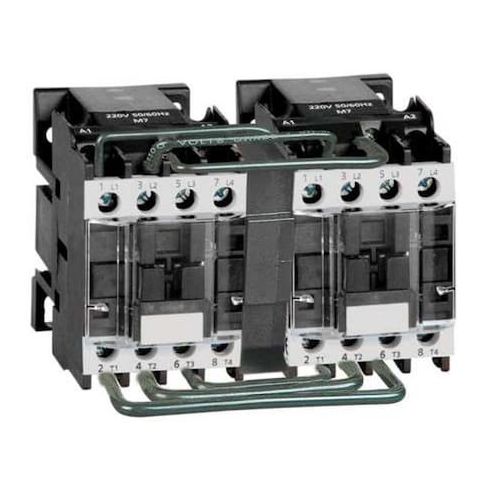

IEC Magnetic Contactor, 1NO, 240V AC, 3 P, Reversing, Screw MPN:6EAW6
Free Shipping
In Stock
The DAYTON IEC Magnetic Contactor is a reliable and versatile power control solution for industrial and commercial applications. With its 3-pole design and reversing functionality, this magnetic contactor can be used to control power circuits in a variety of configurations. Suitable for use in 240V AC systems, it features screw terminals and a normally open auxiliary contact. Ideal for applications such as motor control, lighting, and HVAC systems, this contactor is UL Listed for safety and reliability. Its compact size and easy installation make it a great choice for a wide range of industries and applications.
Top product features:
- Reversing capability: The product can switch the direction of the current flow.
- 3-pole design: The product has three poles that can control power circuits.
- 1NO auxiliary contact: The product has one normally open auxiliary contact for additional control functionality.
Top product applications:
- Control of power circuits in industrial equipment
- Reversing motor control in conveyor systems
- Power distribution in electrical panelboards
The DAYTON IEC Magnetic Contactor is a 3-pole, 1NO, reversing IEC-style magnetic switch designed to control power circuits. It operates with a 240 V AC coil and uses screw terminals, with one normally open auxiliary contact. The unit is UL Listed and has no embedded surge suppressor or enclosure. Its dimensions are 4.13 in wide, 4.13 in high, and 3.18 in deep, and the unit is rated for operation within the specified frequency ranges and includes reversing capability.
- Action: This product has reversing functionality.
- - Poles: 3
- - Auxiliary contacts: 1 (1NO)
- Includes Auxiliary Contacts: Yes
- - Coil voltage: 240 V AC
- - Terminal connection: Screw
- - Enclosure: No Enclosure (NEMA rating)
- - Frequency: 50/60 Hz
- - Full load amps: Inductive 9 A
- Resistive 20 A
- - Horsepower ratings: 1/2 hp @ 120V (single phase)
- 1 hp @ 230V (single phase)
- 1 hp @ 240V (single phase)
- 2 hp @ 208V (3-phase)
- 2 hp @ 240V (3-phase)
- 5 hp @ 480V (3-phase)
- 7 1/2 hp @ 575V (3-phase)
- - Standards: UL Listed
- - Reversing capability: Reversing
- - Dimensions: Width 4.13 in
- Height 4.13 in
- Depth 3.18 in
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 3.60
- Package Height: 4.90
- Package Weight: 1.75
