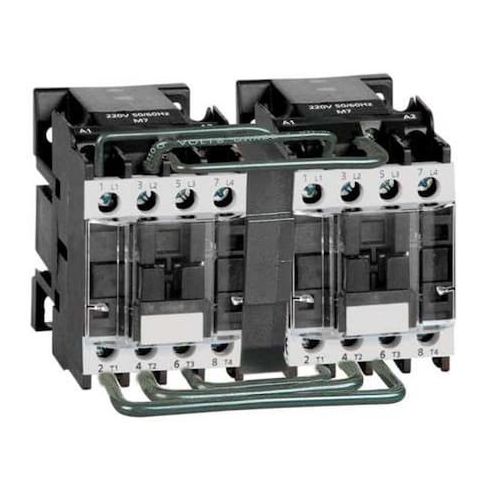

IEC Magnetic Contactor, 1NO, 240V AC, 3 P, Reversing, Screw MPN:6EAX5
Free Shipping
In Stock
The DAYTON IEC Magnetic Contactor is a versatile and reliable switching device ideal for controlling power circuits in various applications. Its reversing capability allows for flexible control of current flow, making it suitable for use in applications such as motor control, lighting, and heating systems. With its 3-pole design and 1NO auxiliary contact, this contactor provides efficient and reliable operation. Its compact size and screw terminal connections make it easy to install in tight spaces. Perfect for use in industrial, commercial, and residential settings, the DAYTON IEC Magnetic Contactor offers a cost-effective solution for controlling power circuits.
Top product features:
- Reversing operation when properly configured according to manufacturer instructions
- Capable of controlling power circuits using an electromagnetic coil
- Includes a normally open auxiliary contact for additional control functionality
Top product applications:
- Motor Control Centers
- Industrial Automation Systems
- Machine Control Panels
The DAYTON IEC Magnetic Contactor is an IEC-style, electrically operated switching device used to control power circuits. It uses an electromagnetic coil to open or close contacts and is reversing-capable, allowing control of current flow in both directions. The unit is a 3-pole device with one normally open auxiliary contact (1NO) and a coil rated for 240 V AC, rated for operation within the specified voltage and current ranges.
- Action: capable of reversing operation when properly configured according to manufacturer instructions
- - Poles: 3
- - Includes Auxiliary Contacts: Yes
- - Auxiliary Contact Configuration: 1NO
- - Auxiliary Contact Form: 1NO
- - Coil Voltage: rated for coil voltages of 240 V AC within specified parameters
- - Coil Volts: 240 V AC
- - Contactor Style: IEC
- - Terminal Connection Type: Screw
- - Depth: 3.75 in (Overall Depth: 3.75 in)
- - Height: 5 in (Overall Height: 5 in)
- - Width: 5 in (Overall Width: 5 in)
- - Dimensions: 5 in W x 5 in H x 3.75 in D
- - Embedded Surge Suppressor: No
- - Enclosure NEMA Rating: does not include an enclosure
- proper installation should comply with applicable safety standards
- - Frequency: 50/60 Hz
- - Hz: 50/60
- - Full Load Amps - Inductive: 25 A
- - Full Load Amps - Resistive: 40 A
- - Full Load Current - Inductive: 25 A
- - Full Load Current - Resistive: 40 A
- - HP @ 1 Phase - 120V: 2 hp
- - HP @ 1 Phase - 240V: 3 hp
- - HP @ 3 Phase - 208V: 5 hp
- - HP @ 3 Phase - 240V: 7 1/2 hp
- - HP @ 3 Phase - 480V: 15 hp
- - HP @ 3 Phase - 575V: 20 hp
- - Standards: UL Listed
- - Reversing Capability: capable of reversing operation when properly configured according to manufacturer instructions
- - Item: IEC Magnetic Contactor
- - NEMA Enclosure Rating: No Enclosure
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.10
- Package Height: 5.00
- Package Weight: 2.70
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
