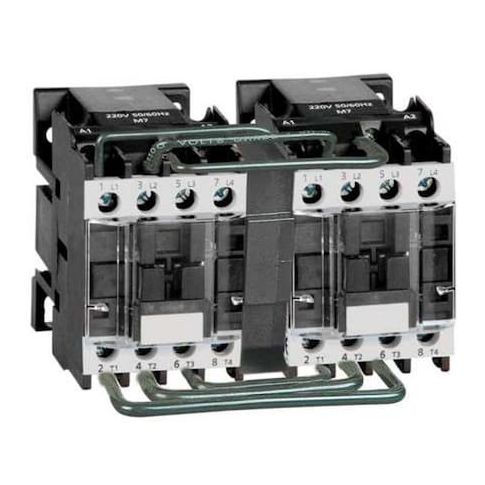

IEC Magnetic Contactor, 1NO, 240V AC, 3 P, Reversing, Screw MPN:6EAX2

• The DAYTON IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It is a reversing, 3-pole contactor with a 240 V AC coil, compatible with applications involving control panels and motor or load switching.

  - Action: Reversing

• - Poles: 3
• - Auxiliary Contact Configuration: 1NO
• - Auxiliary Contact Form: 1NO
• - Coil Voltage: Rated for coil voltages of approximately 240 V AC within specified parameters.
• - Coil Volts: Rated for coil voltages of approximately 240 V AC within specified parameters.
• - Contactor Style: Designed according to IEC style specifications.
• - Enclosure: Does not include an enclosure
• suitable for installation in appropriate environments.
• - Frequency: 50/60 Hz
• - Full Load Amps (Inductive/Resistive): 18 A / 32 A
• - HP @ 1 Phase - 120V: 1 hp
• - HP @ 1 Phase - 230V: 3
• - HP @ 1 Phase - 240V: 3 hp
• - HP @ 3 Phase - 208V: 5 hp
• - HP @ 3 Phase - 240V: 5 hp
• - HP @ 3 Phase - 480V: 10 hp
• - HP @ 3 Phase - 575V: 15 hp
• - Height, Width, Depth, etc.: These are dimensional specifications and do not imply performance guarantees.
• - Includes Auxiliary Contacts: Yes
• - Number of Auxillary Contacts: 1
• - NEMA Enclosure Rating: No Enclosure
• - Standards: UL Listed
• - Terminal Connection Type: Screw
