Capacitor-Start Belt Drive Motor, 1/2 HP, 115/208-230V AC Voltage, 56H Frame, 1, 725 Nameplate RPM MPN:24C180
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5202687
Capacitor-Start Belt Drive Motor, 1/2 HP, 115/208-230V AC Voltage, 56H Frame, 1, 725 Nameplate RPM

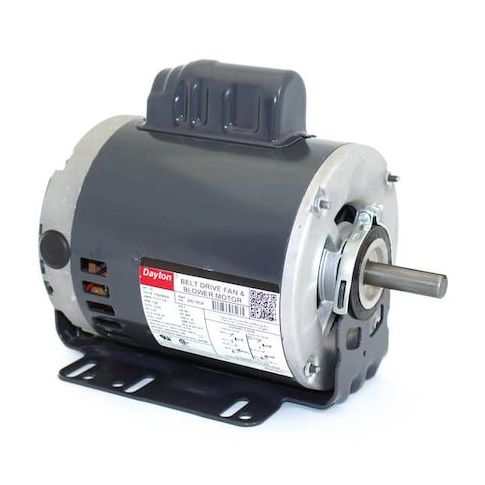

This Dayton 1/2 HP capacitor-start belt drive motor is a reliable and efficient solution for a variety of applications, including ventilation and cooling systems. Its single phase design and 1,725 RPM nameplate speed make it ideal for fans and blowers that require consistent airflow. With a 56H frame size and open drip-proof enclosure, this motor can withstand harsh environments and heavy use. Its compact design and cradle base mounting make it easy to install and integrate into existing systems, providing continuous operation and quiet performance in a wide range of applications.
Top product features:
- Capacitor-start design allows for efficient starting and reduced energy consumption
- Single-phase operation enables easy installation and connection
- Open drip-proof enclosure design provides protection from dust and debris while allowing for easy maintenance and cleaning
Top product applications:
- Air Conditioning and Heating Systems
- Dust Collection Systems
- Industrial Ventilation Systems
Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 7.7/3.7-3.8 A Full Load Amps, 56H Frame, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 25.00
Product info last updated on April 30, 2026 7:08am UTC
Category: Motors
